Solar Pv diode connectors use PPO material with radiation resistance, low temperature resistance, high temperature resistance, high strength waterproof, impact resistance, flame retardant and other characteristics.
Solar Pv diode connector uses copper Tin-plated/copper Silver-plated, with the characteristics of Wear-resistant,corrosion-resistant, Anti-oxidation, Low Resistance, Strong conductivity.

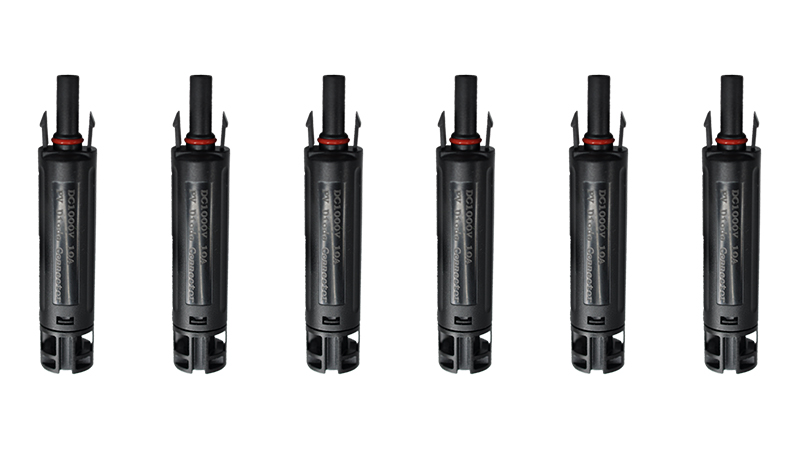

The MC4 doide connector using high-strength waterproof ring, insulating silica gel, with excellent waterproof and dustproof ability, the protection level has reached the highest level IP68.
MC4 solar photovoltaic diode connector has a stable self-locking structure, the use of embedded self-locking design to ensure that the connection is solid and reliable, not easily affected by external forces, improve the stability and reliability of the system.
MC4 diode connectoris easy to install, and the male end and the female end are completely closely embedded, because the formation of a closed space, not only more waterproof and not easy to be separated by external forces.
Reliability: Carefully designed and high quality manufactured to ensure long-term performance and stable operation.
Electrical performance: 1000V rated voltage, low contact resistance (≤0.35mΩ) and high current transmission capacity, improve system efficiency and energy utilization.
Protection level: IP68 protection design, waterproof, dustproof, adapt to harsh outdoor environment, ensure reliability and long life.
Material selection: PPO insulation material has good weather resistance, tinned copper conductor provides good electrical conductivity.
Temperature range: Suitable for a wide temperature range, -40 ° C to +90 ° C ambient temperature, the connector itself can work normally from -40 ° C to +135 ° C.
Security level: Complies with DCII security level requirements to ensure system security and reliability.
Self-locking system: Embedded self-locking system, stable and reliable connection, not easy to loose.
Connection system: Multi-point connection design, suitable for multi-component connection requirements, providing stable reliability.
Connection mode: crimping connection, easy and quick installation.
Easy installation: insertion force ≤50N, withdrawal force ≥50N, easy to install and disassemble the connector.
Rated current: It can support 10A/15A/20A/30A rated current to meet different application requirements.
Flame retardant rating: Through the UL94-V0 flame retardant rating certification, improve system safety.
| Product model |
MC410-1M1FPND0110A |
| Rated voltage |
1000V |
| Insulation material |
PPO |
| Conductor material |
Copper tin-plated |
| Ambient temperature |
-40℃～+95℃ |
| Product temperature |
-40℃～+135℃ |
| Security class |
DCII |
| Waterproof grade |
IP68 |
| Contact resistance |
≤0.35mΩ |
| Connection system | |
| Self-locking system |
Embedded |
| Insertion force |
≤50N |
| Pulling out force |
≥50N |
| Rated current |
10A/15A/20A/30A |
| Flame retardant rating |
UL94-VO |
