"A high-performance connector that leads the photovoltaic Industry"
The solar photovoltaic industry can be said to be one of the most hot new energy fields at present. As a renewable and clean energy source, photovoltaic power generation is gradually replacing traditional fossil fuels and playing an increasingly important role in energy transformation. As a key component of the photovoltaic power generation system, the performance of the connector directly affects the safe and stable operation of the entire photovoltaic power station.
In this article, we will introduce the MC415-1M1FPLN01M high-performance solar photovoltaic connector from SHUNKONN, discuss its excellent technical characteristics and its important position in photovoltaic applications.

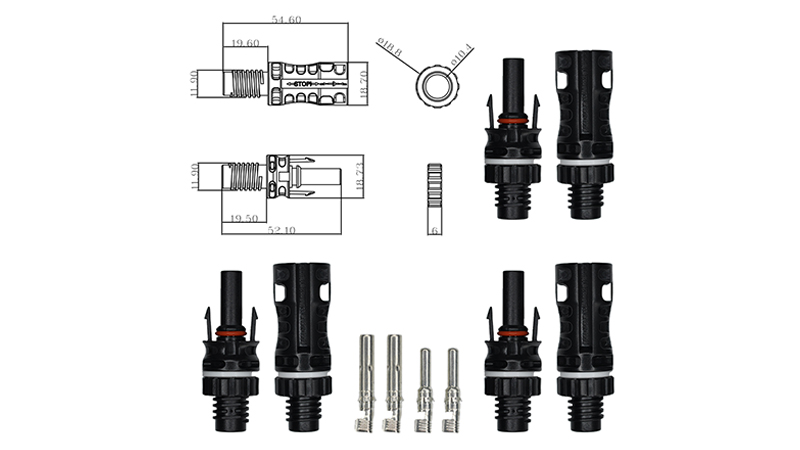

(Click on the picture for details)
The MC415-1M1FPLN01M is a board-end connector specially developed by SHUNKONN for 1500V photovoltaic power stations. As one of the most critical connectors in the photovoltaic system,MC415-1M1FPLN01M pays attention to safety and reliability from the beginning of design, and strives to provide a solid guarantee for the stable operation of photovoltaic power stations.
First of all, this connector uses advanced tinned copper conductors with excellent conductor material and excellent electrical conductivity. The contact resistance is only ≤0.35mΩ, which greatly reduces the heat loss and improves the overall conduction efficiency. At the same time, the conductor uses a high precision manufacturing process to ensure dimensional accuracy and surface finish, further reducing contact resistance and achieving a safer and more reliable power transmission.
In addition, the insulation material of MC415-1M1FPLN01M uses PPO polymer material, which not only has excellent insulation performance, but also has excellent anti-aging, anti-UV and flame retardant properties. According to the UL94-V0 standard, the connector has a very high flame retardant rating, even in the event of a fire will not cause secondary disasters, providing a strong guarantee for the fire safety of photovoltaic power stations.
It is worth mentioning that the protection level of this connector is up to IP68, which can not only be completely dust-proof, but also can be soaked in water for a long time without leakage or short circuit. This further enhances the reliability of the MC415-1M1FPLN01M in severe weather conditions, ensuring the continuous and stable operation of the photovoltaic power station.
On the other hand, the MC415-1M1FPLN01M uses an advanced fast plug design, which greatly improves the efficiency of construction and installation. With a simple operation, a fast, strong connection can be achieved, and workers do not need professional training to complete it. At the same time, the connector design adopts a modular structure, which is easy to repair and replace, and greatly reduces the operation and maintenance cost.
Undoubtedly, excellent technical characteristics make SHUNKONN MC415-1M1FPLN01M connectors stand out in the field of solar PV. Its high rated voltage of 1500V, high current carrying capacity of 30A, and excellent safety performance fully meet the harsh needs of modern large-scale ground power stations and even industrial and commercial distributed photovoltaic power stations.
With the continuous expansion of the scale of photovoltaic power stations, the requirements for connector products are becoming higher and higher. The successful development of SHUNKONN MC415-1M1FPLN01M not only demonstrates the company's deep heritage in the field of new energy, but also marks its leading position in solar PV connection technology. In the future, we believe SHUNKONN will continue to inject vitality into the photovoltaic industry with its own technological advantages and contribute to the cause of clean energy.
