"MCT10-6M6FPLN01Innovative wiring to improve efficiency - Exploring the advantages and applications of solar PV T-type 6 to 1 branch connectors"
Solar photovoltaic T-type 6 to 1 branch connector is an electrical connection device for solar photovoltaic systems, whose main function is to bring together the output of multiple solar panels or photovoltaic modules to provide a common output point.
Multiple-input-one-output design: The T-type 6 to 1 branch design means that the connector can accept inputs from six different PV modules and combine them into one output, simplifying cabling and system design.
Rated voltage: 1000V, suitable for high voltage solar photovoltaic system
Rated current: 50A, can support high power photovoltaic system
Protection class: IP68, indicating that the connector has high water and dust resistance, suitable for outdoor environment use
Material: The use of PPO material, this material has good weather resistance and flame retardant properties, improve the safety and durability of the connector
Conductor material: copper-tinned conductor ensures excellent electrical conductivity and corrosion resistance
High voltage and current tolerance: The connector can withstand voltages up to 1000V and currents up to 50A, making it suitable for large solar photovoltaic systems.
IP68 protection rating: This means that the connector has good water and dust resistance, suitable for outdoor use, and can resist harsh natural environments.
PPO material: PPO insulation material has good weather resistance, can provide a long outdoor service life, and has excellent water resistance and insulation.
Wide temperature range: applicable temperature range from -40 ° C to +90 ° C, the connector itself can work normally in the range of -40 ° C to +135 ° C, to adapt to extreme climate conditions.
Easy installation and replacement: The design supports quick installation and removal, simplifying the installation process and improving the overall efficiency of the system, while facilitating maintenance and troubleshooting.
Easy maintenance and expansion: Make the system more modular for easy maintenance and troubleshooting. At the same time, if the system needs to be expanded, new photovoltaic modules can be added more easily.
Cost savings: By simplifying cabling and improving system efficiency, the installation and operating costs of solar photovoltaic systems can be reduced.

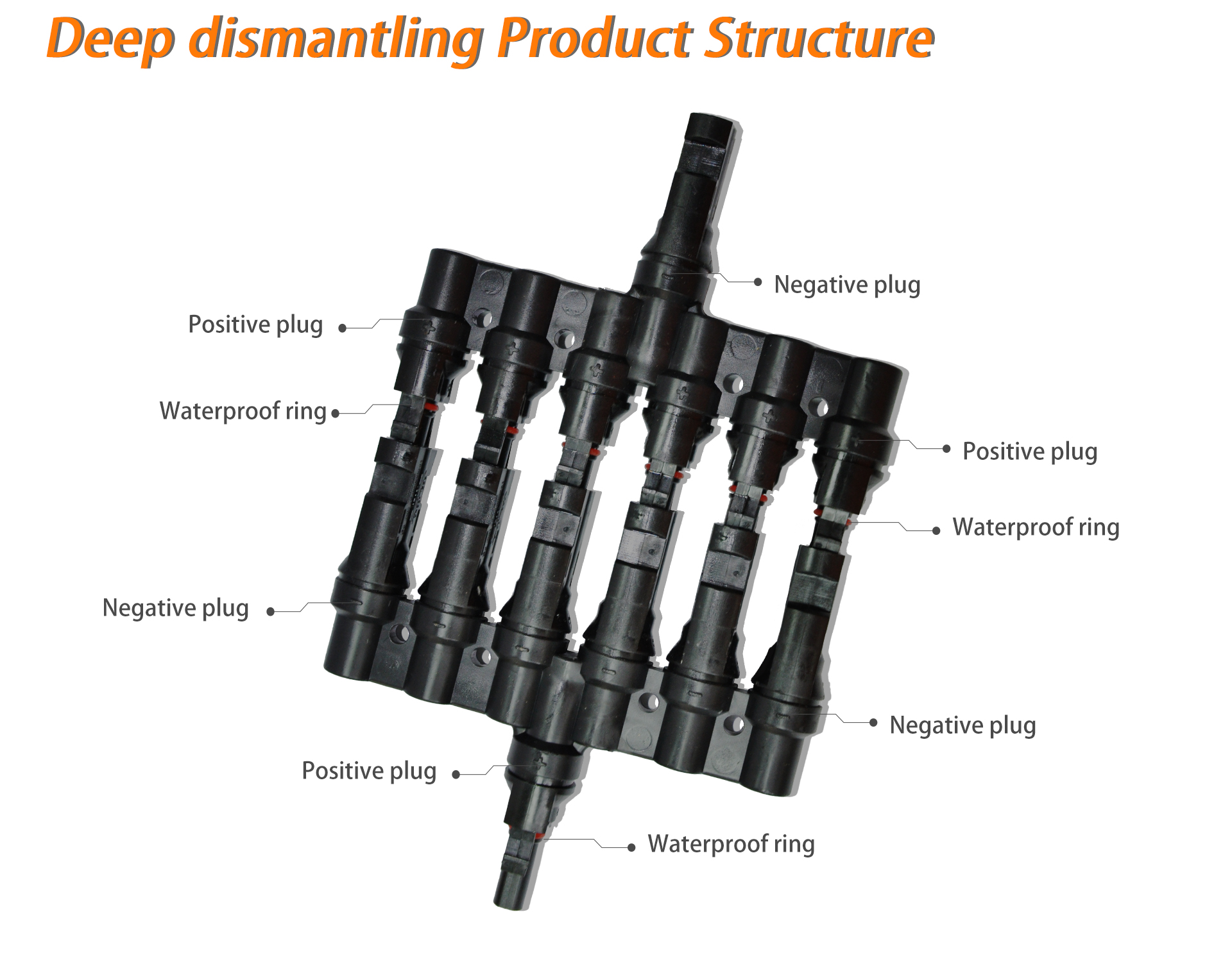

.jpg)
Solar PV T-type 6 to 1 branch connector has a wide range of uses:
Solar photovoltaic systems: In solar photovoltaic systems, T-branch connectors are used to bring together the output of multiple solar panels or photovoltaic modules into a common output point, simplifying the wiring and design of the system.
Large photovoltaic power plants: In large photovoltaic power plants, the use of T-branch connectors can significantly simplify wiring, reduce the number of cables required and installation workload, and improve the overall efficiency of the system.
Commercial and Industrial buildings: In rooftop or ground-mounted solar photovoltaic systems in commercial and industrial buildings, T-branch connectors can facilitate maintenance and expansion while saving costs.
Residential solar systems: In residential solar systems, T-branch connectors can simplify wiring, improve system safety, and facilitate maintenance and troubleshooting.
Solar PV T-type 6 to 1 branch connectors are an integral part of solar systems, helping to ensure the stable operation and long-term reliability of solar systems by providing the necessary circuit protection and simplified wiring.
