Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6
Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6
Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6
Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6
Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6

0040

Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6

Production status: in mass production If you want to know more about this product, please contact us.
Get a Quotation
Sample Request
Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6
Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6
Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6
Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6
Shunconn Energy Storage Cabinet Connector 120A Round thread Φ6
Product Details

PV Connector PV branch connector PV Fuse Connector PV Diode Connector PV Cable assembly PV Cable Solar Tool kit DC Energy Storage Connectors RV junction box Solar panel Junction box Battery connection cable PV DC fusse DC circuit breaker DC Surge protector Energy storage connection cable Energy Storage Connectors < p style="white-space: normal;">



Product Info

Production status: in mass production

If you want to know more about this product, please contact us.

Product Properties

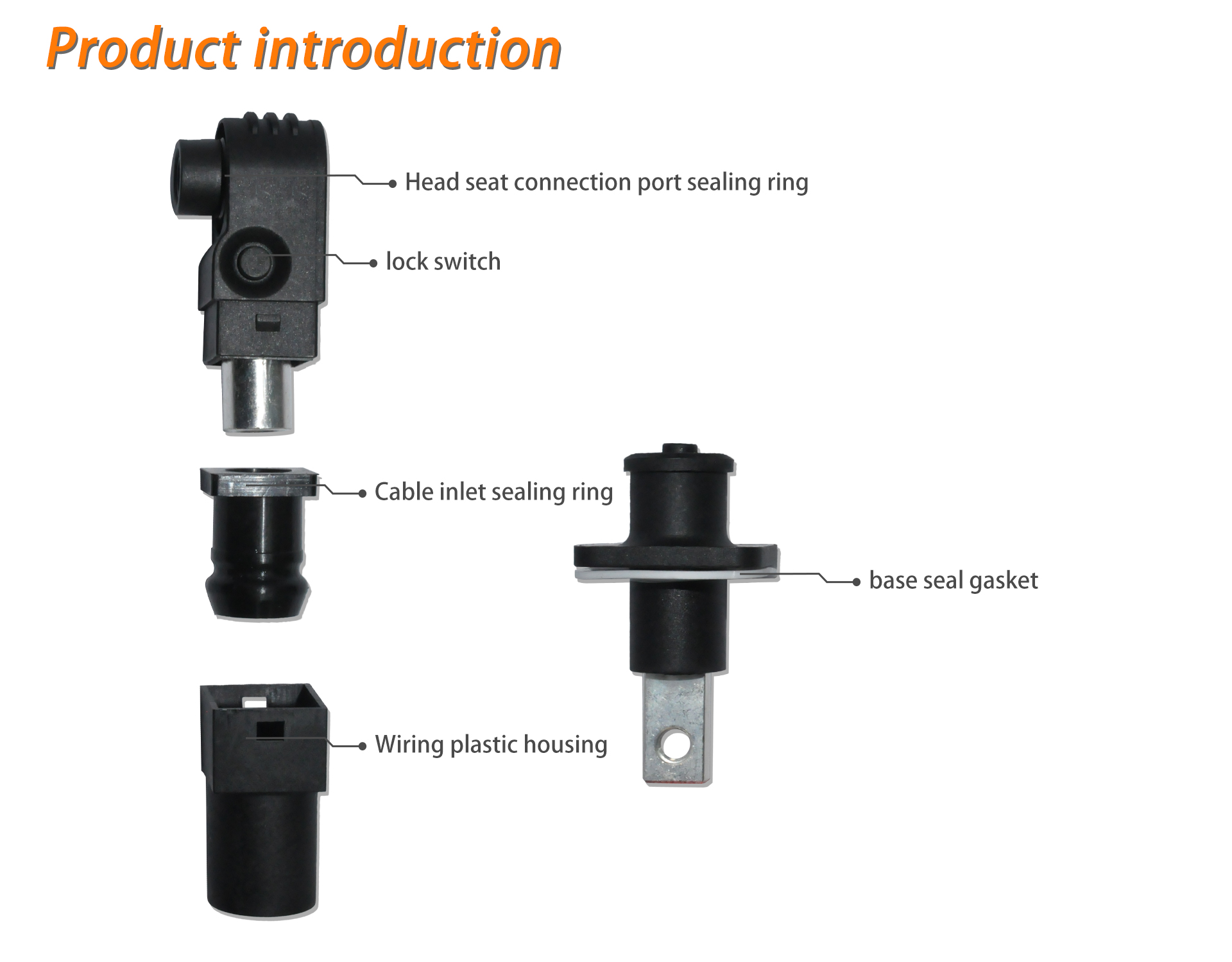

Name of product : Energy Storage Cabinet Connector

shell material : Polyamide 66

making process : Precision Injection

waterproof level : IP67

Current and voltage : 60A/100A 1000VDC Max

Wiring specification : 10/16mm²

usage count : >2000 times

Pin size : Φ6

contact material : Copper silver plated

Fire-proof level : UL94v-0

temperature range : -40-105°

Contact impedance : 0.05MΩ Max

Dielectric strength : ≥3000VAC/min

Anti-shedding force : ＞200N
