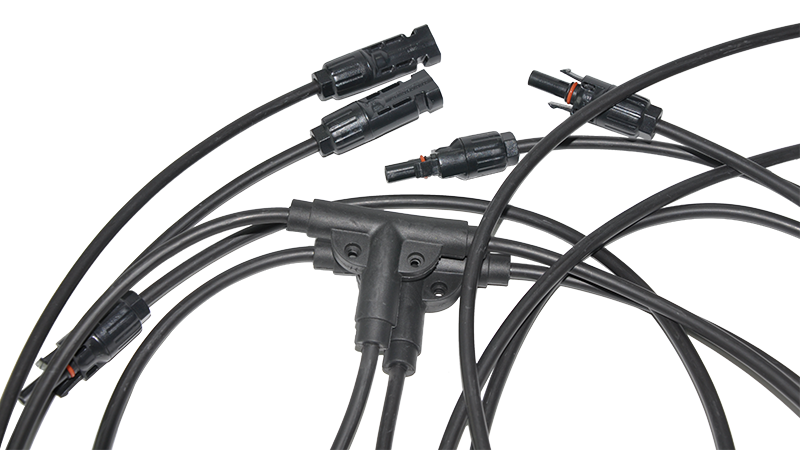

Solar Pv T-type 4T branch connectors use PPO material with radiation resistance, low temperature resistance, high temperature resistance, high strength waterproof, impact resistance, flame retardant and other characteristics.

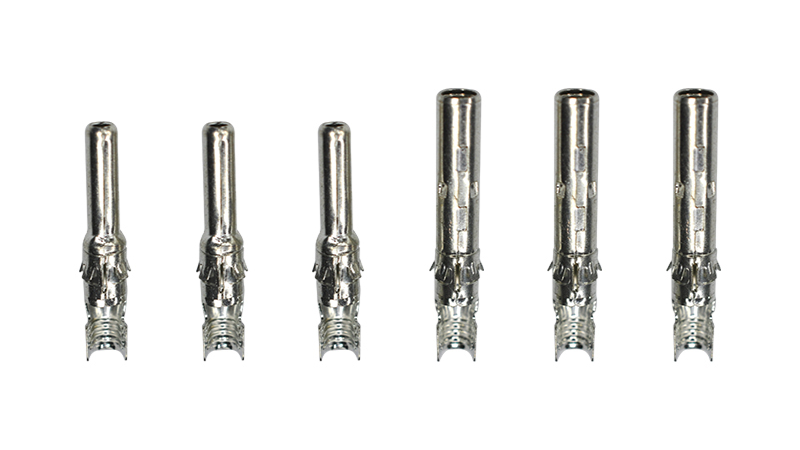

Solar T-type branch connector has open U-shaped conductor (O-type conductor is optional), with copper tin plating, wear resistance, corrosion resistance, oxidation resistance, low resistance, strong electrical conductivity and other other properties.
Solar Pv T-type 4T connector use high-strength waterproof ring, insulating silica gel, with excellent waterproof and dustproof ability, the protection level has reached the highest level IP68.
The photovoltaic connector has an embedded self-locking design to ensure a solid and reliable connection and is not easy to loosen, improving the stability and reliability of the system. This self-locking system ensures that the connectors do not loosen or break in vibration and impact environments, providing a long-term stable connection to the system.
MC4 Solar PV connector is easy to install, and the male end and the female end are completely closely embedded, because the formation of a closed space, not only more waterproof and not easy to be separated by external forces.
Reliability: Carefully designed and high quality manufactured to ensure long-term performance and stable operation.
Electrical performance: 1000V rated voltage, low contact resistance (≤0.35mΩ) and high current transmission capacity, improve system efficiency and energy utilization.
Protection level: IP68 protection design, waterproof, dustproof, adapt to harsh outdoor environment, ensure reliability and long life.
Material selection: PPO insulation material has good weather resistance, tinned copper conductor provides good electrical conductivity.
Temperature range: Suitable for a wide temperature range, -40 ° C to +90 ° C ambient temperature, the connector itself can work normally from -40 ° C to +135 ° C.
Security level: Meets the requirements of DCII security level to ensure the safety and reliability of the system.
Self-locking system: Embedded self-locking system, stable and reliable connection, not easy to loose.
Connection system: Multi-point connection design, suitable for multi-component connection requirements, providing stable reliability.
Connection mode: crimping connection, easy and quick installation.
Rated current: Support 30A rated current, meet the requirements of product specifications.
Flame retardant grade: Through UL94-V0 flame retardant grade certification, improve the safety of the system.
| Product Name |
MCT10-4M1FPSN01 |
| Rated voltage |
1000V |
| Insulation material |
PPO |
| Conductor material |
Copper tin-plated |
| Ambient temperature |
-40℃～+95℃ |
| Product temperature |
-40℃～+135℃ |
| Security class |
DCII |
| Waterproof grade |
IP68 |
| Contact resistance |
≤0.35mΩ |
| Connection system |
Multi-point connection |
| Self-locking system |
Embedded |
| Wiring method |
Crimping |
| Wiring specifications |
4mm² |
| Rated current |
1.5mm²:17A 2.5mm²:22.5A 4mm²～6mm²:30A |
| Flame retardant rating |
UL94-VO |
