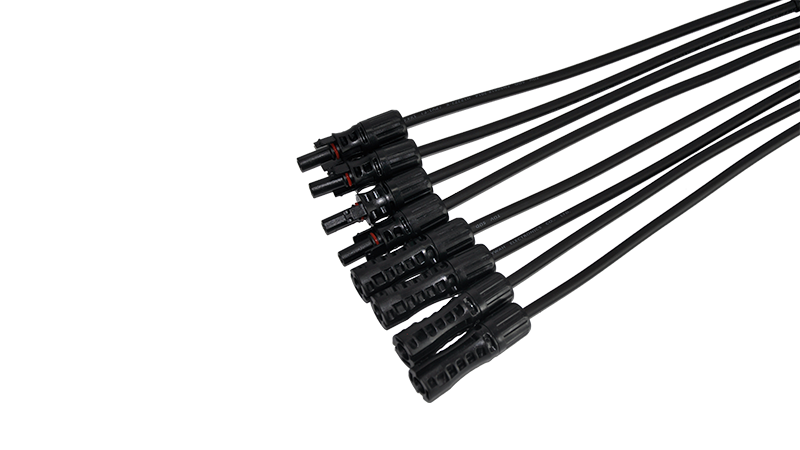

MC4 Solar photovoltaic y-type connectors use PPO material with radiation resistance, low temperature resistance, high temperature resistance, high strength waterproof, impact resistance, flame retardant and other characteristics.
Solar Pv Y-type 4 to 1 connector has openning U-shaped conductor (O-type conductor is optional), with copper tin plating, wear resistance, corrosion resistance, oxidation resistance, low resistance, strong electrical conductivity and other characteristics.
MC4 Solar PV Y-type connector adopts high-strength waterproof ring. insulatingsilica Gel, waterproof and dust-proof, protection grade IP68.
The mc4 y-type 4 to 1 connector adopts the mode of embedded connection. The male and female ends have a stable self-locking structure, which can be freely opened and closed for fast connection.
MC4 solar y-type connector is easy to install, and the male end and the female end are completely closely embedded, because the formation of a closed space, not only more waterproof and not easy to be separated by external forces.
Reliability: Carefully designed and high quality manufactured to ensure long-term performance and stable operation.
Electrical performance: 1500V rated voltage, low contact resistance (≤0.35mΩ) and high current transmission capacity, improve system efficiency and energy utilization.
Protection level: IP68 protection design, waterproof, dustproof, adapt to harsh outdoor environment, ensure reliability and long life.
Material selection: PPO insulation material has good weather resistance, tinned copper conductor provides good electrical conductivity.
Temperature range: Suitable for a wide temperature range, -40 ° C to +90 ° C ambient temperature, the connector itself can work normally from -40 ° C to +135 ° C.
Security level: Meets the requirements of DCII security level to ensure the safety and reliability of the system.
Self-locking system: Embedded self-locking system, stable and reliable connection, not easy to loose.
Connection system: Multi-point connection design, suitable for multi-component connection requirements, providing stable reliability.
Connection mode: crimping connection, easy and quick installation.
Rated current: Support 30A rated current, meet the requirements of product specifications.
Flame retardant grade: Through UL94-V0 flame retardant grade certification, improve the safety of the system.
| Product model |
MCY15-4M4FPSN01 |
| Rated voltage |
1500V |
| Insulation material |
PPO material |
| Conductor material |
copper plated tin |
| Ambient temperature |
-40℃ ~ +90℃ |
| Product temperature |
-40℃ ~ +135℃ |
| Security class |
DCII |
| Waterproof grade |
IP68 |
| Contact resistance |
≤0.35mΩ |
| Connection system |
Multipoint connection |
| Self-locking system |
embedded |
| Wiring method |
crimping |
| Wiring specifications |
4mm²/6mm² |
| Rated current |
30A |
| Flame retardant rating |
UL94-V0 |
