MC4 Solar connector with Radiation Resistance, Low Temperature Resistance, High Temperature Resistance, High Strength Waterproof, Impact Resistance, Flame Retardant and other characteristics.
Solar 1500V 50A connectors are copper tin-plated/copper silver-plated, wear-resistant, corrosion-resistant, anti-oxidation, low resistance, strong conductivity and other properties.
The MC4 solar connector is made by high-strength waterproof ring, insulating silica gel, with excellent waterproof and dustproof ability, the protection level has reached the highest level IP68 waterproof connector.

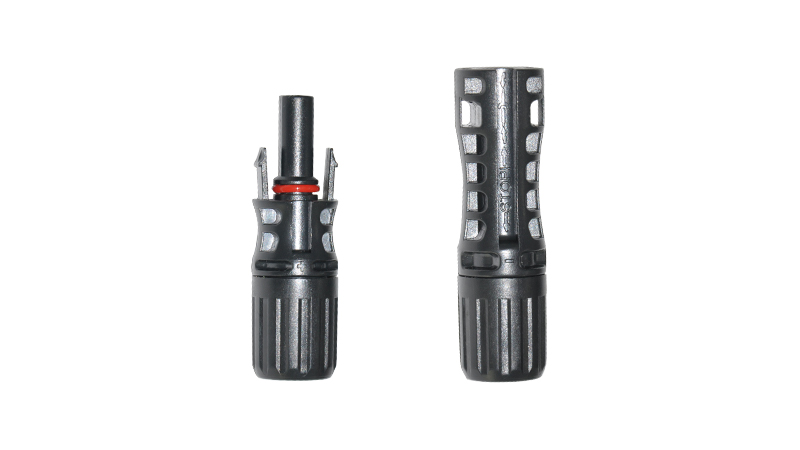

The connection of MC4 solar connector is installed by pressing in, and the male and female ends are self-locking structure, which can be easily opened and closed by pressing the key.
MC4 Solar PV connector is easy to install, and the male end and the female end are completely closely embedded, because the formation of a closed space, not only more waterproof and not easy to be separated by external forces.
| Product model |
MC415-1M1FPLN4001/6001/1001 |
| Rated voltage |
1500V |
| Insulation material |
PPO material |
| Conductor material |
copper plated tin |
| Ambient temperature |
-40℃ ~ +90℃ |
| Product temperature |
-40℃ ~ +135℃ |
| Security class |
DCII |
| Waterproof grade |
IP68 |
| Contact resistance |
≤0.35mΩ |
| Connection system |
Multipoint connection |
| Self-locking system |
embedded |
| Wiring method |
crimping |
| Wiring specifications |
4mm²、6mm²、10mm² |
| Rated current |
50A |
| Flame retardant rating |
UL94-V0 |
