Description
MC4 Solar Connector Certified by TUV/UL/IEC/CE standards and are suitable for Ø2.5-Ø16mm² photovoltaic solar cable. Up to 25 years of working life, with long-term stable electrical contact performance. Get your PV installations up and running efficiently and safely. Achieving sustainable and successful PV profitability.
It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.
The insulated enclosure of the MC4 connector is made of high quality PC material.Polycarbonate (PC) is a transparent thermoplastic with carbonate functional groups.It is widely used because of its good electrical insulation properties, high impact strength, high heat resistance, effective protection from UV radiation, environmentally friendly processing and recyclability.

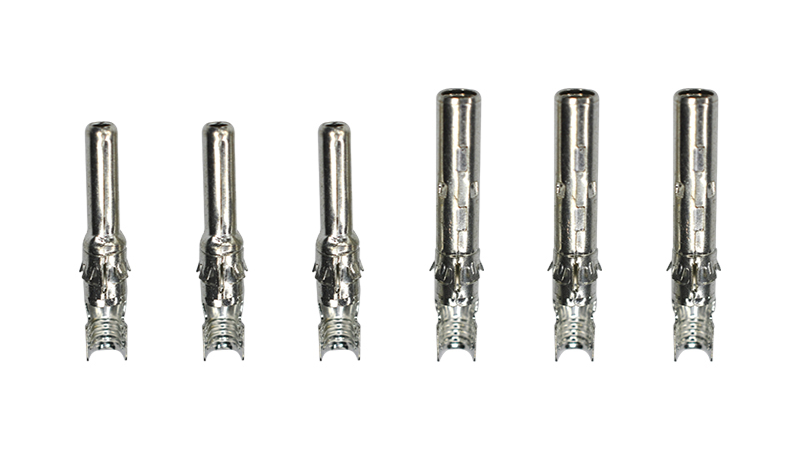

Open U-shape Conductor ,Copper tin-plated conductor can greatly improve the corrosion resistance, conductivity and weldability, ensure the long-term reliable operation of MC4 connector in harsh outdoor environment, and enhance the overall beauty of the connector, which is an important technical support for its wide application.
The solar connector has a high quality rubber seal ring placed on the male and female head, which can effectively prevent moisture and dust from penetrating into the joint gap and achieve IP67 protection level. Even in the rain and snow weather, wet environment for a long time, its waterproof performance can be reliably guaranteed.
The photovoltaic connector has an embedded self-locking design to ensure a solid and reliable connection and is not easy to loosen, improving the stability and reliability of the system. This self-locking system ensures that the connectors do not loosen or break in vibration and impact environments, providing a long-term stable connection to the system.
The solar cable connector has an integrated waterproof design for excellent sealing performance. When connecting, the male head and female head form a complete sealing space, effectively blocking the influence of external harsh environment, greatly reducing the risk of leakage and corrosion. The integrated waterproof structure not only greatly improves the installation efficiency, but also significantly extends the service life and reduces the maintenance cost.
| Product model |
MC410-1M1FCSNXX02 |
| Rated voltage |
1000V |
| Insulation material |
PC material |
| Conductor material |
copper plated tin |
| Ambient temperature |
-40℃ ~ +90℃ |
| Product temperature |
-40℃ ~ +135℃ |
| Security class |
DCII |
| Waterproof grade |
IP67 |
| Contact resistance |
≤0.35mΩ |
| Connection system |
Multipoint connection |
| Self-locking system |
embedded |
| Wiring method |
crimping |
| Wiring specifications |
2.5mm², 4mm², 6mm² |
| Rated current |
1.5mm²:17A 2.5 mm²: 22.5 A 4mm² ~ 6mm²:30A |
| Flame retardant rating |
UL94-V2 |
